Wall Panel Color Steel Roll Forming Machine

Place of Origin : Hebei

Model Number : 9-130-910

Price : USD5500-8500/SET

Packaging Details : Naked and fastened in the container We have container loading plan in advance to make full use of t

Delivery Time : within 30 days after deposit

Payment Terms : T/T

Supply Ability : 20 SET/ MONTH

MOQ : 1 SET

Contact Now

910 Fully Automatic Control Cutting Color tile Steel Roof Roll Forming Machine

1.Forming Tile Show:

Wall Panel Color Steel Roll Forming Machine

2.Producing Process Show:

Wall Panel Color Steel Roll Forming Machine

3.Equipment Technical Pamameter:

Main Forming Machine Technical Pamameter:

machine size	5800mm1400mm1300mm
Feeding width	1000mm/1250mm
Equipment weight	3.5T
Material of shaft	45#steel adjustable treatment
Out diameter of shaft	φ70mm
Material of roller	Cr12, quenched treatment HRC58-60°C
Number of forming rollers	12 standard rollers
Main frame	300 H steel
Thickness of medium plate	14mm
Transportation system	Chain transportation
Thickness of chain	0.6 inch
Main motor power	3 KW
Bearing	6213
Forming speed	8-12m/min
Rolling thickness	0.3-0.8mm

Ps:Parameters above is the standard configuration.Parameters can be designed as per your special requests.

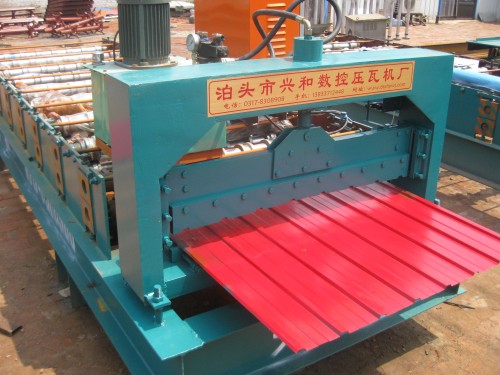

4.Equipment Show:

Wall Panel Color Steel Roll Forming Machine

5.Equipment Loading Show:

Wall Panel Color Steel Roll Forming Machine

6.Customers to Visit:

Wall Panel Color Steel Roll Forming Machine

Ps:our products have been exported to more than 20 countries and regions over the world, and maintained good cooperative relations with customers .

We do firmly believe in technological innovation and making every detail of the product perfect is our ambition ever.

7.About Us:

Botou Xinghe Roll Forming Machinery Co.,Ltd. is located in botou - the home of roll forming machine . With8years of production experience ,we can offer you good quality machine at favourable price .

8.Service:

1) Pre-sale service:

Freely provide project designing, process designing, choosing suitable equipment for you.

2) Medium-sales service:

Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3) After-sales service:

We sent engineer to the scene to guide installation, debugging and training operators.
